Sichuan Liaofu Tshwj Xeeb Steel Tuam Txhab yog ib qho ntawm cov tuam txhab kev paub tshaj plaws thiab cov neeg muag khoom ntawm 16mncr5 forged steel round bar hauv Suav teb. Nrog tshaj 20 xyoo kev paub, peb lub Hoobkas muab cov khoom lag luam zoo hauv Suav teb nrog cov nqi sib tw. Txais tos tiv tauj peb rau kev pabcuam lag luam wholesale.

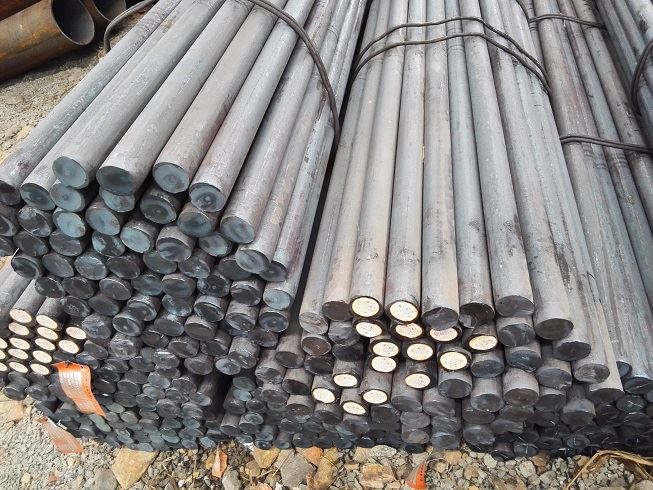

EN 1.7131 Steel 16MnCr5 Khoom siv
EN 1.7131 steel (16MnCr5 khoom) yog ib qho European txheem carburized steel (cov ntaub ntawv hardening steel) nrog zoo hardenability thiab machinability. Rau cov ntoo khaub lig loj dua - ntu ntu, qhov tawv tawv siab thiab hnav tsis kam tuaj yeem tau txais tom qab kev kho cua sov, thiab qis- qhov kub thiab txias cuam tshuam qhov hnyav kuj siab. Rau specification thiab datasheet, thov mus saib cov lus hauv qab no.
16MnCr5 steel feem ntau yog siv tom qab carburizing thiab quenching, thiab feem ntau yog siv rau kev tsim cov iav, worms, sealing bushings thiab lwm yam khoom.
(DIN EN 1.7131 Khoom siv) 16MnCr5 Steel Chemical Composition
Cov lus hauv qab no qhia cov tshuaj muaj pes tsawg leeg ntawm 16MnCr5 khoom (1.7131 steel).
| Tshuaj muaj pes tsawg leeg% | |||||||
| Txuj | Hlau Lub Npe (Steel Number) | C | Si Less than los sib npaug | Mn | P Tsawg dua lossis sib npaug | S | Cr |
| TS EN 10084 | 16MnCr5 (1.7131) | 0.14-0.19 | 0.40 | 1.00-1.30 | 0.025 | Tsawg dua lossis sib npaug li 0.035 | 0.80-1.10 |
| TS EN 10084 | 16MnCrS5 (1.7139) | 0.14-0.19 | 0.40 | 1.00-1.30 | 0.025 | 0.020-0.040 | 0.80-1.10 |
Mechanical Properties ntawm 1.7131 Hlau (16MnCr5 Khoom)
1.7131 khoom, 16MnCr5 steel Brinell hardness
- ●Soft annealed: Tsawg dua lossis sib npaug rau 207 HBW
- ● Kho rau hardness: 156-207 HBW
- ● Kho rau ferrite-pearlite qauv thiab hardness: 140-187 HBW
- ●Normalized: 138-187 HBW
TS EN 1.7131, 16MnCr5 Tensile zog (tom qab hardening thiab tempering ntawm 200 degree)
- ● Dia. Tsawg dua lossis sib npaug li 16 hli: Min. 1000 MPa
- ●16 < Dia. Tsawg dua lossis sib npaug li 40mm: Min. 800 Mpa
- ●40 < Dia. Tsawg dua lossis sib npaug li 100mm: Min. 600 Mpa
Kev kho cua sov Specification ntawm 16MnCr5 (1.7131 Steel)
- ●End quench test Austenitizing kub: 870℃(30-35 feeb)
- ● Carburizing kub: 880-980 degree
- ●Core - hardening kub: 860-900 degree
- ●Case- hardening kub: 780-820 degree
- ●Tempering: 150 - 200℃(Ntau dua lossis sib npaug li 1 teev)
Qib sib npaug
EN 1.7131 khoom (16MnCr5 steel) sib npaug rau ISO, US ASTM AISI SAE, Japanese JIS thiab Suav GB txuj. (Rau siv)
|
|||||||||||||||||||||||||||||||||
txog peb
Peb muaj tus kheej loj- teev nyob rau hauv tsev warehouse nrog perennial chaw stocks tag nrho saum 5000 tons feem ntau suav nrog 2000 tons galvanized steel series thiab
2500 tons carbon steel series.
Tag nrho cov khoom yuav tsum dhau qhov kev tshuaj ntsuam xyuas xws li kev ntsuas nruj, ntsuas qhov nyuaj, kuaj spectrophotometer, kuaj ntsev ntsev thiab PH xeem ua ntej tawm hauv lub hoobkas.
FAQ
Q: Vim li cas 16MnCr5 feem ntau nyiam tshaj 5115 rau cov iav nrog ib ntu tuab saum 25mm?
A: Vim hais tias 16MnCr5 muaj ntau dua manganese thiab chromium, nws hardens tob dua . 5115 muaj cov pa roj carbon tsawg me ntsis thiab tsis muaj zog hardenability, yog li cov tub ntxhais yuav nyob twj ywm mos nyob rau hauv thicker seem. Rau ib lub iav uas xav tau cov tub ntxhais tawv tawv los txhawb rooj plaub, 16MnCr5 muab cov tub ntxhais zoo sib xws tom qab quenching. Yog tias koj tab tom ua tus pins me me lossis nyias nyias, 5115 yog qhov zoo. Rau cov tsheb thauj khoom lossis hnyav- lub luag haujlwm shafts, 16MnCr5 yog qhov kev xaiv zoo dua.
Q: Dab tsi yog qhov txawv ntawm carburizing ntawm 880-980℃thiab core -hardening ntawm 860-900℃- yog cov kauj ruam cais?
A: Carburizing yog qhov siab -kub theem uas carbon diffuses rau saum npoo. Tom qab ntawd, koj txias rau 860–900℃rau cov tub ntxhais- hardening, ces quench. Qhov kub qis dua refines cov nplej thiab txo cov distortion. Yog tias koj lub qhov cub tso cai rau quenching ncaj qha los ntawm qhov kub thiab txias, koj tuaj yeem hla qhov nruab nrab txias, tab sis koj yuav muaj kev pheej hmoo ntawm coarser nplej thiab ntau distortion. Rau precision iav, txias rau 860-900 degree, sib npaug, ces quench. Case{11}} hardening ntawm 780-820℃yog ib qho reheat cais siv tom qab txias nruab nrab los yog rau xaiv hardening.
Q: Kuv puas tuaj yeem siv 16MnCr5 nyob rau hauv cov xwm txheej tsis zoo ntawm cov mos mos annealed?
A: Yog, tab sis nws nyuaj rau cov cuab yeej. Normalized muab 138-187 HBW, thaum mos annealed tsawg dua los yog sib npaug rau 207 HBW. Cov qauv zoo li qub yog qhov sib txawv dua thiab tuaj yeem ua kom zoo dua qhov chaw tiav hauv qee qhov haujlwm, tab sis rau hobbing, drilling, lossis broaching, mos annealed yog yooj yim dua thiab txuas lub neej ntawm cov cuab yeej. Yog tias koj tab tom tig los yog milling cov duab yooj yim, normalized yuav ua tau. Rau iav txiav, lo nrog mos annealed.
Q: Yuav ua li cas kuv kwv yees qhov tseem ceeb hardness tom qab carburizing thiab quenching rau ib tug muab bar txoj kab uas hla?
A: Core hardness nyob ntawm seem loj thiab quench ceev. Rau 16MnCr5, me me hauv qab 16 hli tuaj yeem ncav cuag 30-35 HRC core hardness tom qab tempering ntawm 200 degree. Qhov ntawd sib haum rau qhov tsawg kawg nkaus 1000 MPa tensile lub zog teev rau qhov loj. Raws li txoj kab uas hla nce, core hardness poob. Rau 40-100mm seem, qhov tsawg kawg nkaus tensile zog yog 600 MPa, uas yog kwv yees li 20-25 HRC. Yog tias koj xav tau cov tub ntxhais muaj zog ntau dua hauv ntu loj, koj tuaj yeem xav tau qib sib txawv lossis nrawm dua.
Q: Puas yog Suav qib 16CrMnH hloov ncaj qha rau EN 16MnCr5?
A: Tsis yog ib txwm. 16CrMnH ib GB/T 5216 muaj cov hardenability bands (a thiab b) uas txawv ntawm EN 10084. Cov manganese thiab chromium ranges sib txawv, uas cuam tshuam qhov sib sib zog nqus ntawm cov hlau. Rau qhov tsis yog- qhov tseem ceeb, kev hloov pauv tuaj yeem ua haujlwm. Rau cov iav uas yuav tsum tau raws li qhov tshwj xeeb Jominy nkhaus lossis rooj plaub qhov tob, koj yuav tsum sib piv cov ntaub ntawv hardenability ntawm lub zeb. Peb tuaj yeem muab ob qib nrog cov ntaub ntawv qhia txog tshuaj lom neeg thiab tawv tawv, tab sis koj pab neeg ua haujlwm yuav tsum pom zoo rau kev hloov pauv.
Q: Koj puas npaj 16MnCr5 hauv cov kab me me rau kev sim, thiab koj puas tuaj yeem txiav luv luv?
A: Peb tuav ntau tshaj 5000 tons hauv peb lub tsev rau khoom, suav nrog carbon steel series. Rau 16MnCr5, peb Tshuag puag ncig tuav los ntawm Φ18-460mm hauv 6m ntev. Peb tuaj yeem txiav raws li koj xav tau ntev, suav nrog luv luv rau kev sim. Tsis muaj qhov tsawg kawg nkaus rau kev txiav tawm ntawm cov khoom lag luam, txawm tias qhov tsawg heev yuav muaj tus nqi tuav. Txhua qhov kev xa khoom tuaj nrog kev nro, hardness, thiab spectrophotometer test reports. Qhia peb txoj kab uas hla, qhov ntev, thiab qhov ntau, thiab peb yuav hais qhov kev xaiv ceev tshaj plaws.
